The SULTAN 234, is a non
intrusive acoustic wave transmitter with
flexibility, used for measuring liquids and solids.
The SULTAN 234 emits a high powered acoustic wave
transmit pulse which is reflected from the surface
of the material being measured. The reflected signal
is processed using specially developed software to
enhance the correct signal and reject false or
spurious echoes.
The transmission of these high powered waves
ensures minimal losses through the environment where
the sensor is located. Due to this high powered
emitted pulse, any losses have a far less effect
than traditional ultrasonic devices. More energy is
transmitted hence more energy is returned. The
receiver circuitry is designed to indentify and
monitor low level return signals even when noise
levels are quite high.
The measured signal is temperature compensated to
provide maximum accuracy to the outputs and display. |
|
|
The LIQUID is a non
intrusive acoustic wave transmitter used for
measuring liquid level.
The LIQUID emits a high powered acoustic wave
transmit pulse which is reflected from the surface
of the liquid being measured. The reflected signal
is processed using specially developed software to
enhance the correct signal and reject false or
spurious echoes.
The transmission of these high powered waves
ensures minimal losses through the environment where
the sensor is located. Due to this high powered
emitted pulse, any losses have a far less effect
than traditional ultrasonic devices. More energy is
transmitted hence more energy is returned. The
receiver circuitry is designed to identify and
monitor low level return signals even when noise
levels are quite high.
The measured signal is temperature compensated to
provide maximum accuracy to the outputs and display. |
|
|
The ORCA series Sonar
will measure up to two density interfaces
simultaneously, either bed level or RAS blanket and
floc/fluff layer or clarity of water, using the new
ORCA Sonar hardware.
The ORCA series Sonar transmits a sound pulse
through the water (liquid) towards the
blanket/interface at the bottom of the tank. The
pulse is reflected off the blanket/interface back to
the sonar transducer, which is interpreted by the
sonar transmitter, compensated for temperature and
provides a distance reading to the blanket/interface
or height of blanket/interface from the bottom up.
An analogue output or comms based output tracks this
blanket/interface.
The ORCA series also provides a second
independent output that can be programmed to track
either the clarity of the water (liquid) monitoring
the change of suspended solids, or other stratified
interfaces or, the fluff/floc layer (where the
interface moves independent of the RAS blanket/bed
level and needs to be monitored to prevent overflow
into the launders).
The ORCA processing software monitors the
operating efficiency of the sonar transducer. As the
efficiency drops off, due to build-up of scum, air
bubbles, scaling etc. to the transducer diaphragm,
the automatic cleaning mechanism will remove all
scum and attached solids to restore the sonar
transducers optimum efficiency. |
|
|
Point level switching
for presence or absence of most solid and liquid
materials. Environmentally and personally safe
replacement for nucleonic switches. Not restricted
by OSHA or FCC regulations. Caution sign posting not
required.

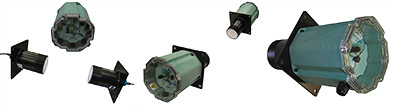

The Hawk Microwave Pulse Sender-Receiver Remote
System is comprised of three electrically isolated
units:- the sender unit, three receiver units and
amplifier unit. The Integral System is comprised of
two electrically isolated units;- the send and the
receiver unit. The Sender-Receiver units are mounted
facing each other. For best performance it is
essential that they be mounted securely and
correctly aligned.
The sender emits a burst of microwave energy
toward the receiver, which is designed around a
tuned microwave detector. This burst of energy is
transmitted approximately 200 times each second.
While the line-of-sight is interrupted by a
sufficiency reflective or absorbent material the
energy will not reach the receiver, and therefore
the receiver will not detect the transmission.
The receiver is designed to switch a relay when
it's detector changes state. Time delays between
detector change and relay switching is set via two
single turn potentiometers; there is a potentiometer
for the make (signal detected) delay and another for
the break (signal interrupted) delay. In each case
the relay will switch only after the detector state
has been maintained (since it's change) for the
respective time: any further change of state during
a time-out period will override the previous change. |
|
